Sunset Yellow FCF (E 110)
Water-soluble orange-yellow azo dye for E 110 colour reference work, spectrophotometry, analytical method development and teaching.
At a Glance
Overview

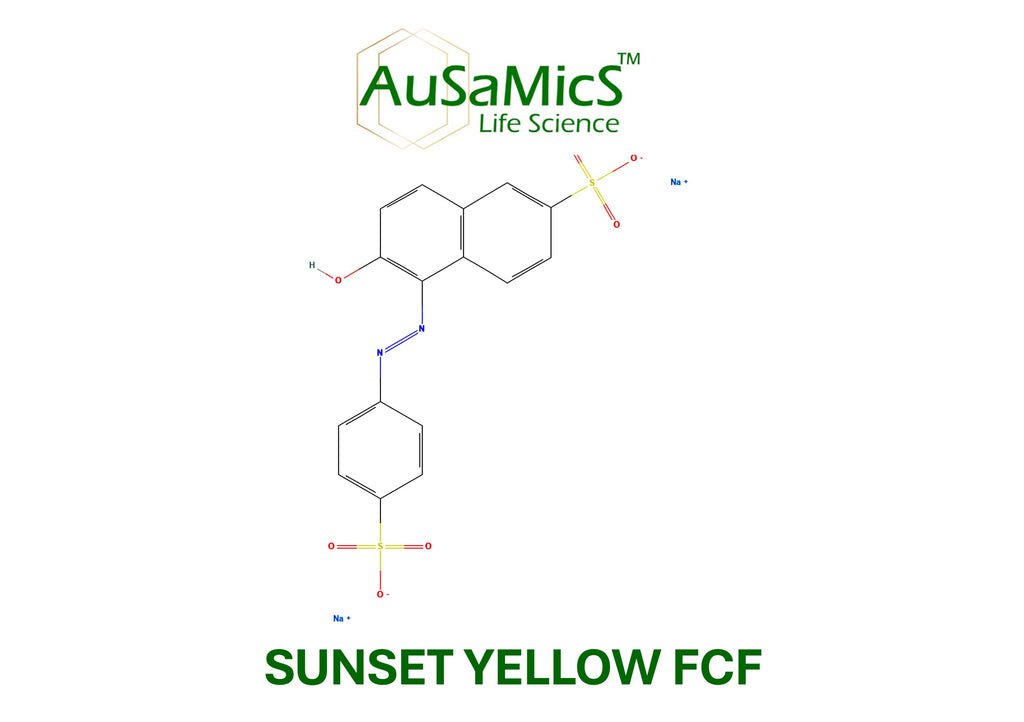

Sunset Yellow FCF is the disodium salt of a sulfonated phenylazo-naphthol dye. Its two sulfonate groups make it freely water-soluble and anionic. The powder is orange-yellow, and solutions are a clear orange-yellow with an absorption maximum near 480 nm.
In the laboratory, Sunset Yellow FCF is used as the reference colour for E 110 analysis, as an absorbance standard, and as a model azo dye in chromatography, sensing and decolourisation research.
For laboratory, research, education and quality-control use. Not intended for human or veterinary therapeutic use, diagnosis, or direct consumption. Food-grade (E 110) material. For food-industry supply, contact Ausamics for suitability and regulatory documentation.
Colour at a Glance
Powder is orange-yellow. Solution is orange-yellow. Absorbance rises in direct proportion to concentration at 480 nm.
Key Applications
Advantages & Considerations
- Pure dye content ≥ 85 % (current batch 85.38 %)
- Meets the E 110 purity limits on the batch certificate
- Very low heavy metals: lead and arsenic below 1 ppm
- Freely water-soluble; no heating needed
- Not an FDA-certified FD&C Yellow No. 6 batch
- Not permitted as a food colour in the United States
- Fades under strong oxidants, reducing agents and strong light
- Avoid creating dust when weighing
Specification Summary
| Parameter | Specification |
|---|---|
| Pure dye content (E 1 %, 1 cm at 480 nm) | Min. 85.0 % |
| Appearance | Orange-yellow powder |
| Hue of 1 % solution | Orange-yellow |
| Loss on drying at 135 °C (as sodium salts) | Max. 15.0 % |
| Moisture at 110 °C | Max. 2.0 % |
| Water-insoluble matter | Max. 0.20 % |
| Subsidiary colouring matters | Max. 1.0 % |
| Organic compounds other than colouring matters | Max. 0.5 % |
| Unsulfonated primary aromatic amines (as aniline) | Max. 0.01 % |
| Ether-extractable matter | Max. 0.2 % |
| Arsenic (As) | Max. 1 ppm |
| Lead (Pb) | Max. 1 ppm |
| Mercury (Hg) | Max. 0.05 ppm |
| Cadmium (Cd) | Max. 0.1 ppm |
| Chromium (Cr) | Max. 2 ppm |
| Copper (Cu) | Max. 30 ppm |
| Zinc (Zn) | Max. 50 ppm |
| Heavy metals (as Pb) | Max. 5 ppm |
Frequently Asked Questions
Is Sunset Yellow FCF the same as FD&C Yellow No. 6?
Sunset Yellow FCF is the chemical name, and E 110 is its European food-additive number. FD&C Yellow No. 6 is the US name for batches certified by the FDA. This product meets the E 110 purity limits on the batch certificate; it is not an FDA-certified FD&C batch.
What is the difference between Sunset Yellow FCF and tartrazine?
Both are yellow azo food colours, but they are different dyes. Sunset Yellow FCF (E 110) gives an orange-yellow shade with λmax near 480 nm. Tartrazine (E 102) gives a lemon-yellow shade with λmax near 426 nm.
Is Sunset Yellow FCF permitted as a food colour?
It is permitted in the EU as E 110 and is listed in the Australia New Zealand Food Standards Code as colour 110. In the United States only FDA-certified batches may be used in food, under the name FD&C Yellow No. 6.
How do I make a stock solution?
Dissolve 1.0 g in about 80 mL of purified water, stir until clear and make up to 100 mL to give a 1 % w/v solution. Store away from light.
What wavelength should I use for absorbance measurements?
Sunset Yellow FCF absorbs most strongly at about 480 nm in water. Use this wavelength for calibration curves and dye-content checks.
Technical Specifications
| Catalogue No. | ASD-630 |
| C.I. number | 15985 |
| CAS / EC | 2783-94-0 / 220-491-7 |
| E number | E 110 |
| Formula | C₁₆H₁₀N₂Na₂O₇S₂ |
| Mol. weight | 452.37 g/mol |
| Dye content | Min. 85 % (E 1 %, 480 nm) |
| λmax | ≈ 480 nm (water) |
| Storage | 15–25 °C, dry, dark, tightly closed |
| Shelf life | 36 months from manufacture |
| Documents | TDS, SDS; batch COA on request |
Applications
- E 110 reference and QC
- Spectrophotometry standard
- HPLC method development
- Dye-removal research
- Teaching laboratories
Stock Solution (1 % w/v)
- Weigh 1.0 g of Sunset Yellow FCF.
- Add to about 80 mL of purified water.
- Stir until fully dissolved; no heating is needed.
- Make up to 100 mL with purified water.
- Store in a closed bottle at room temperature, away from light.
Storage & Stability
Store at 15–25 °C in a dry place, tightly closed and protected from sunlight, heat and moisture. Shelf life is 36 months from the date of manufacture under these conditions.
Technical Data Sheet — Sunset Yellow FCF
TDS-ASD-630 · Rev 1.0 · November 2026| Chemical name | Disodium 6-hydroxy-5-[(4-sulfonatophenyl)diazenyl]naphthalene-2-sulfonate |
| Synonyms | Sunset Yellow FCF; Orange Yellow S; CI Food Yellow 3; FD&C Yellow No. 6 (US name for FDA-certified batches) |
| C.I. number | 15985 |
| E number | E 110 |
| CAS number | 2783-94-0 |
| EC number | 220-491-7 |
| Molecular formula | C₁₆H₁₀N₂Na₂O₇S₂ |
| Molecular weight | 452.37 g/mol |
| Dye class | Monoazo, anionic (acid) dye |
E 110 reference colour, spectrophotometric standard, model azo dye for analytical and environmental research, and teaching reagent. For laboratory, research, education and quality-control use. Not intended for human or veterinary therapeutic use, diagnosis, or direct consumption.
The two sulfonate groups make Sunset Yellow FCF anionic and freely water-soluble. Its phenylazo-naphthol chromophore absorbs blue light at about 480 nm, which gives the orange-yellow colour.
| Appearance | Orange-yellow powder |
| Colour of 1 % aqueous solution | Orange-yellow |
| Absorption maximum (λmax) | approx. 480 nm in water |
| Solubility | Freely soluble in water; slightly soluble in ethanol |
| Moisture at 110 °C | Max. 2.0 % |
| Stability | Good stability in normal laboratory conditions; protect from sunlight, heat and moisture |
| Parameter | Specification |
|---|---|
| Pure dye content (E 1 %, 1 cm at 480 nm) | Min. 85.0 % |
| Appearance | Orange-yellow powder |
| Hue of 1 % solution | Orange-yellow |
| Loss on drying at 135 °C (as sodium salts) | Max. 15.0 % |
| Moisture at 110 °C | Max. 2.0 % |
| Water-insoluble matter | Max. 0.20 % |
| Subsidiary colouring matters | Max. 1.0 % |
| Organic compounds other than colouring matters | Max. 0.5 % |
| Unsulfonated primary aromatic amines (as aniline) | Max. 0.01 % |
| Ether-extractable matter | Max. 0.2 % |
| Arsenic (As) | Max. 1 ppm |
| Lead (Pb) | Max. 1 ppm |
| Mercury (Hg) | Max. 0.05 ppm |
| Cadmium (Cd) | Max. 0.1 ppm |
| Chromium (Cr) | Max. 2 ppm |
| Copper (Cu) | Max. 30 ppm |
| Zinc (Zn) | Max. 50 ppm |
| Heavy metals (as Pb) | Max. 5 ppm |
Stock solution (1 % w/v): dissolve 1.0 g in about 80 mL purified water and make up to 100 mL. Dilute for use according to your method.
15–25 °C, dry, tightly closed, protected from sunlight, heat and moisture. Shelf life 36 months from manufacture.
- Commission Regulation (EU) No 231/2012, Annex: E 110 Sunset Yellow FCF, Orange Yellow S. Specifications for food additives.
- FAO/WHO JECFA. Sunset Yellow FCF: Combined Compendium of Food Additive Specifications. ADI 0–4 mg/kg body weight.
- EFSA ANS Panel (2014). Reconsideration of the temporary ADI and refined exposure assessment for Sunset Yellow FCF (E 110). EFSA Journal 12(7):3765.
- Regulation (EC) No 1333/2008 on food additives, Annex V: additional labelling for foods containing E 102, E 104, E 110, E 122, E 124 and E 129.
- US Code of Federal Regulations, 21 CFR 74.706: FD&C Yellow No. 6 (batch certification required).
- Horobin R.W., Kiernan J.A. (eds) (2002). Conn's Biological Stains, 10th ed. BIOS Scientific Publishers, Oxford.
Safety Data Summary — Sunset Yellow FCF
SDS-ASD-630 · Rev 1.0 · November 2026 · Full 16-section SDS available on requestNot classified as hazardous according to the criteria of the GHS (Rev. 7) as adopted under the Australian Work Health and Safety Regulations. No hazard pictogram or signal word is required.
- Avoid creating and breathing dust. Use with adequate ventilation.
- Wear nitrile gloves, laboratory coat and safety glasses.
- The dye stains skin and surfaces; clean spills promptly with water.
- Inhalation: Move to fresh air.
- Skin: Wash with soap and water.
- Eyes: Rinse with water for several minutes. Seek medical advice if irritation persists.
- Ingestion: Rinse mouth. Seek medical advice if you feel unwell.
Poisons Information Centre (Australia): 13 11 26 · Emergency: 000
Store at 15–25 °C, dry, tightly closed and protected from light. Dispose of according to local regulations.
Not regulated as dangerous goods for road (ADG), sea (IMDG) or air (IATA) transport.
Quality & Certificate of Analysis
ASD-630 · Batch-specific COA available on requestEach batch is supplied with traceable manufacturer test data. A batch-specific Certificate of Analysis is available on request. Please quote the batch number printed on the label.
| Test | Specification | Result |
|---|---|---|
| Pure dye content (E 1 %, 1 cm at 480 nm) | Min. 85.0 % | 85.38 % |
| Appearance | Orange-yellow powder | Orange-yellow powder |
| Hue of 1 % solution | Orange-yellow | Orange-yellow |
| Loss on drying at 135 °C (as sodium salts) | Max. 15.0 % | 12.95 % |
| Moisture at 110 °C | Max. 2.0 % | 0.92 % |
| Water-insoluble matter | Max. 0.20 % | 0.08 % |
| Subsidiary colouring matters | Max. 1.0 % | 0.42 % |
| Organic compounds other than colouring matters | Max. 0.5 % | 0.38 % |
| Unsulfonated primary aromatic amines (as aniline) | Max. 0.01 % | < 0.01 % |
| Ether-extractable matter | Max. 0.2 % | 0.08 % |
| Arsenic (As) | Max. 1 ppm | < 1 ppm |
| Lead (Pb) | Max. 1 ppm | < 1 ppm |
| Mercury (Hg) | Max. 0.05 ppm | 0.005 ppm |
| Cadmium (Cd) | Max. 0.1 ppm | 0.04 ppm |
| Chromium (Cr) | Max. 2 ppm | < 1 ppm |
| Copper (Cu) | Max. 30 ppm | 20 ppm |
| Zinc (Zn) | Max. 50 ppm | 30 ppm |
| Heavy metals (as Pb) | Max. 5 ppm | < 5 ppm |
Results as reported on the manufacturer's certificate of analysis dated 19/10/2026.
